HDPE Litchi milk juice bottle filling machine and aluminum foil sealing machine

  • 1 - 1 Sets
    $20,000.00
  • >=2 Sets
    $19,000.00
Power:
3-12KW
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Layout drawing (Min. Order: 1 Sets)
Factory building (Min. Order: 1 Sets)
Technical Team Service (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Applicable Industries:
Food & Beverage Factory, Drinking water factory
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Food, Beverage, PET bottle water
Packaging Type:
CANS, Bottles, Barrel
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
According to Customer requests
Place of Origin:
Jiangsu, China
Brand Name:
LUYE
Dimension(L*W*H):
By Model
Weight:
By Model
Certification:
ISO/CE/SGS/BV
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Long Service Life
Product name:
Luye Series water filling machine{ Washing filling capping 3-in-1)
Function:
Bottle Washing Filling Capping
Bottle type:
PET Plastic Bottle
Material:
SUS304/316(Meet GMP Standard)
Filling volume:
200ml-2000ml
Structure:
Rotary
Filling precision:
within 2mm
capacity:
3000BPH-3600BPH
Product Certification certification
CE Certified.
Valid from 2016-05-24 until 2021-05-23
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
LUYE-XGF Series Water Filling Machine [ Washing Filling Capping 3 in 1 ]
Normally use PE film inside, wooden case packaging.
Port
Shanghai,Ningbo,Guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Product Application

ain parameters

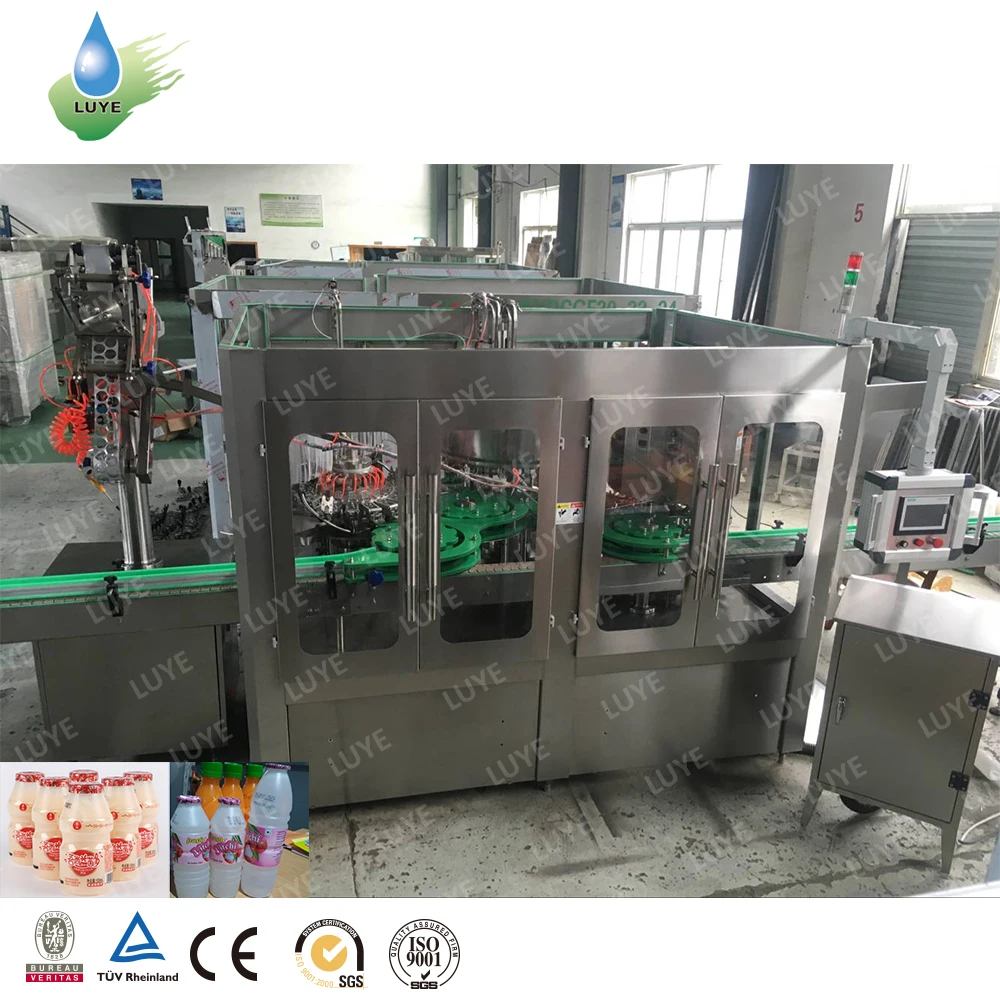

Three in one filling and foil conduction sealing machine
Application.

It is mainly used in the filling enterprise of various beverage dairy products, integrating three functions of rinsing, filling
and sealing.
Automated throughout the process, suitable for polyester bottles and new material bottles
2-composition of the equipment
2、1;Main structure
2、1、 1 Main frame and protective door
This part is the support of entire machine with high strength and stability. Table board and protective doors are manufactured
with stainless steel.
2、 1 、 2 Conveying system
Includes air conveying,rinsing, juice filling system, sealing and outlet.
2、1、5 sealing system
This part mainly includes a sealing aluminum ring and a sealing copper piece, a bottle holder and a cam lifting mechanism, etc.,
and the sealing is electrically heated. Each sealing head has an independent temperature control display. When the temperature is
too low and the sealing is faulty, the automatic alarm can locate the faulty location and quickly repair. The clip plate is
movable, and the contact surface is more stable when it is sealed.
2、1、6 Capping system
The cover head is used as a magnetic ring to maintain a constant magnetic force. The torque of the cover can be adjusted easily,
that is, it can be grasped or rotated.
The cover head and cover rotation stop knife are made of die steel, the swing rod is made of copper and gold, and the tightness of
the cover can be adjusted at will.
It is equipped with a top cover rod to prevent multiple cover grabs when the capping machine has no bottle. Automatic capping
machine, straighten the bottle cap and send it to the cap grabbing plate.


Equipment type
Full automatic



Application for bottle:

Round or suqre bottle
Volume 200 - 2000ml
Diameter:Φ50~120mm

Bottle height:160~320mm

 Diameter of bottle mouth:Φ25~38mm
Capacity Per hour
 3000~18000BPH
Guarantee
Free warranty since 12 months after installation & commissioning, or 15 month after delivery date
After serivce
Life-long maintenance

   Would like to know more about LUYE Machine equipments, feel free to send us an inquiry!

PRODUCT SHOW

Advantage:

1- PLC and Touch screen full automatic control. Easy for operate

2- Fastly different bottle size replacement

3- Concise structure, reliable and durable, easy to maintain.

Detailed Images

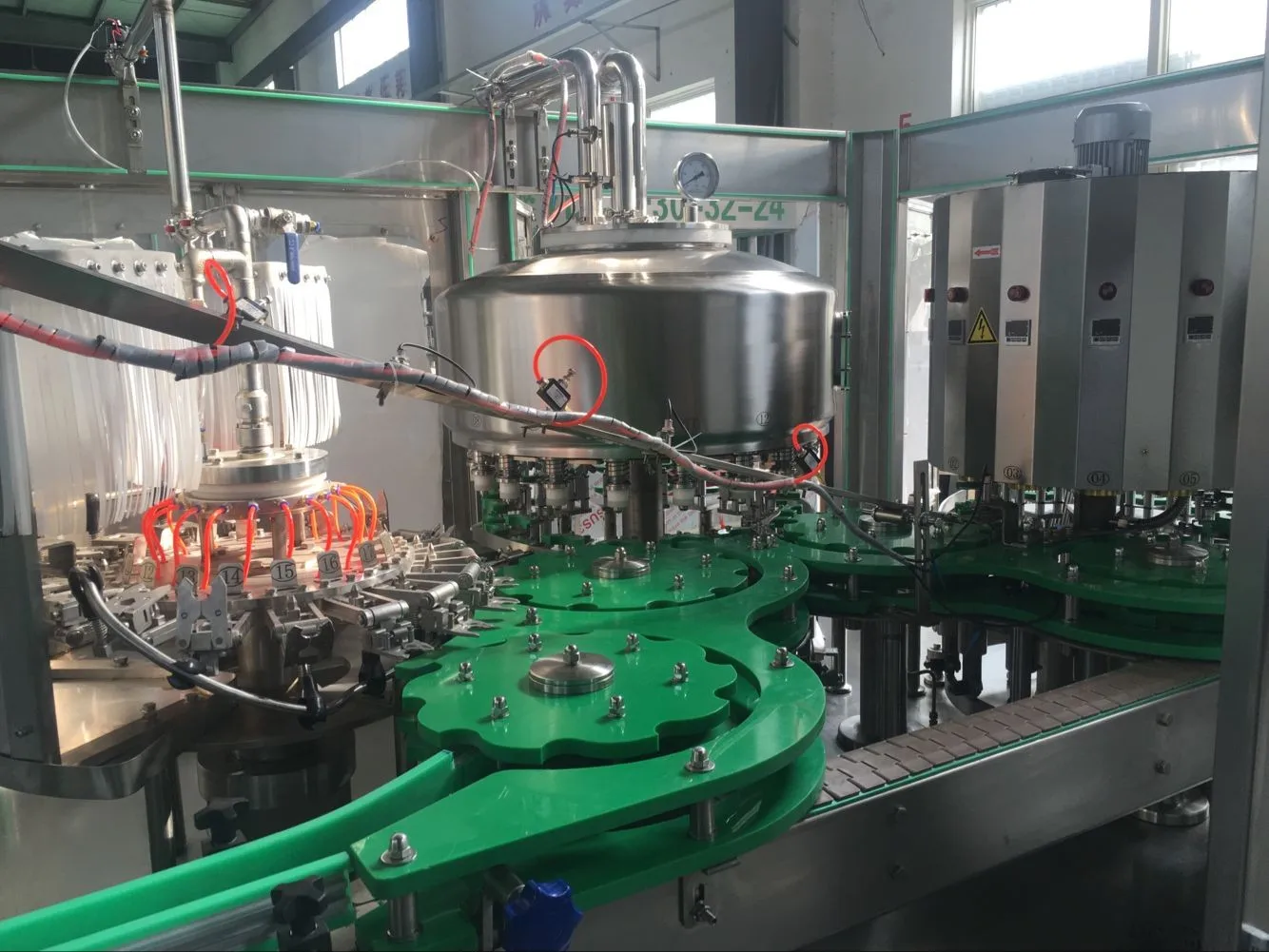

Washing part composes of bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray etc.

Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding starwheel, which can clamp the bottle neck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the starwheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts.

Filling part

juice filling system

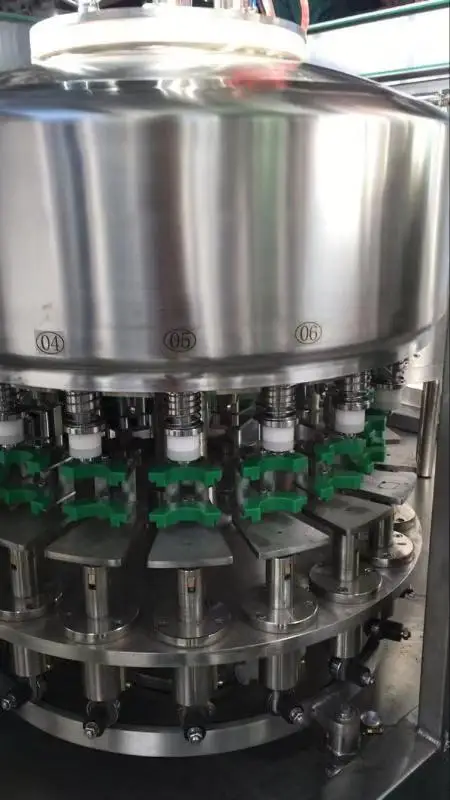

This part mainly includes filling cylinders, filling valves, bottle holders and cam lifting mechanisms. The filling valve is made
of 304 stainless steel. It will not block the valve body because the fruit enters the filling valve. The seal is made of special
stainless steel for the ternary and one-cylinder springs.
p plate of starwheel drive V.

Capping part

sealing system

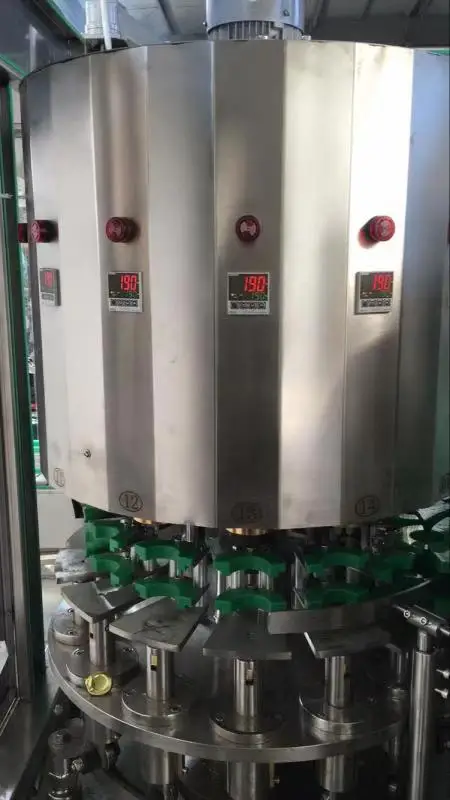

This part mainly includes a sealing aluminum ring and a sealing copper piece, a bottle holder and a cam lifting mechanism, etc.,and the sealing is electrically heated. Each sealing head has an independent temperature control display. When the temperature is
too low and the sealing is faulty, the automatic alarm can locate the faulty location and quickly repair. The clip plate is
movable, and the contact surface is more stable when it is sealed.
2. Capping system
The cover head is used as a magnetic ring to maintain a constant magnetic force. The torque of the cover can be adjusted easily,
that is, it can be grasped or rotated.
The cover head and cover rotation stop knife are made of die steel, the swing rod is made of copper and gold, and the tightness of
the cover can be adjusted at will.
It is equipped with a top cover rod to prevent multiple cover grabs when the capping machine has no bottle. Automatic capping
machine, straighten the bottle cap and send it to the cap grabbing plate
