Glass Bottle beer/alcoholic/wine/ spirits bottling machine filling Production Line

  • 1 - 2 Sets
    $20,000.00
  • >=3 Sets
    $19,500.00
Power:
1.2KW-5.6KW
Model Number:
RCGF8-3 RCGF12-4 RCGF18-6 RCGF24-6 RCGF32-8
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Layout drawing (Min. Order: 1 Sets)
Factory building (Min. Order: 1 Sets)
Technical Team Service (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Russia, Nigeria
Showroom Location:
None
Condition:
New
Application:
Food, Beverage
Packaging Type:
Bottles
Packaging Material:
Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Place of Origin:
Jiangsu, China
Brand Name:
LUYE
Dimension(L*W*H):
depneds on model
Weight:
depneds on model
Certification:
CE ISO BV
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points:
High-accuracy
Machinery Capacity:
4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH
Filling Material:
Beer, wine
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Motor, Pump, PLC
Product name:
beer Drink Filling Machine
Function:
Washing Filling Capping
Filling material:
Gas Liquid
Bottle type:
Glass Botte
Usage:
Beverage Filling Packaging
Suitable for:
beer factory
Advantage:
High Accuracy
Keywords:
beer production line
Product Certification certification
CE Certified.
Valid from 2016-05-24 until 2021-05-23
Supply Ability
Supply Ability:
10 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden package
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description

SINCE 1989

LUYE has More than 30 years Professional Manufacturer of Turn-key Beverage Machinery.
Filling Machine Description

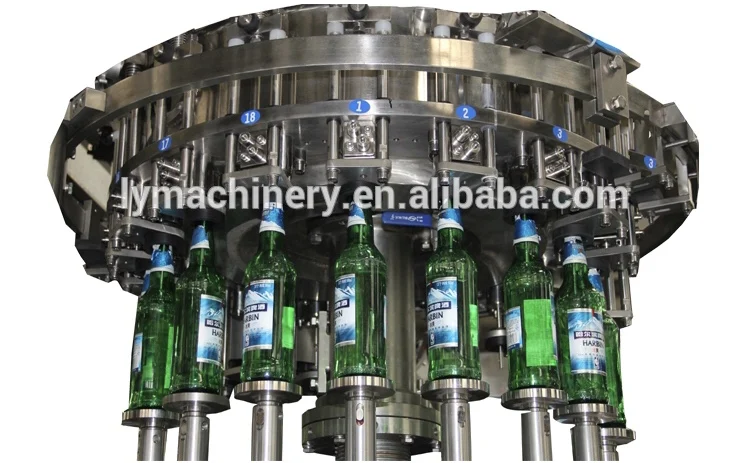

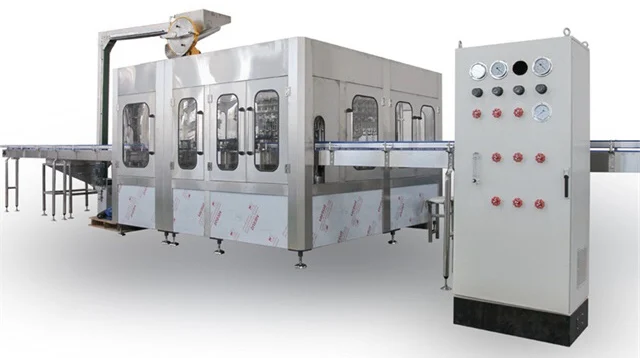

LUYE RCGF Series Carbonated FILLER

Glass Bottle Beer/carbonated soft drink filling machine adopts continuous automatic control for liquid level in the filling bowl, double-leader type centering cover, twice vacuumizing, low-temperature equal-pressure filling, automatic concentrated lubrication and the capping heads have been installed with overloading protection device.
The filling machine has the function of closeing filling valves when there is broken bottle, and washing away broken bottle. The vent pipe has automatic foam-removing device The crafty cap-unscrambling and capping design with overloading protection and the function is sufficient. It is controlled by PLC.
Technical parameter :Beer bottling machine
Model
RCGF12-12-1
RCGF12-12-4
RCGF18-18-6
RCGF24-24-8
RCGF32-32-10
RCGF40-40-12
Capacity(for 500ml)
500bph
1000bph
1500bph
3000bph
6000bph
10000bph
Suitable bottle
Glass bottle / pet bottle
Bottle volume
200ml ~ 1l
Compressor air
0.3-0.7mpa
Air consumption
0.37 m3/min
Rinsing pressure
<0.4 mpa
Application
beer bottling machine
Total power (kw)
4.4kw
5.2kw
6.2kw
7.5kw
8.2kw
9.2kw
Overall dimensions
2.5*1.9m
2.8*1.9m
3.2*2.2m
3.4*2.5m
4.8*2.3m
5.2*2.3m
Height
2.3m
2.5m
2.5m
2.5m
2.5m
2.8m
Weight(kg)
3000kg
4500kg
6000kg
8500kg
10000kg
12000kg
Product Details

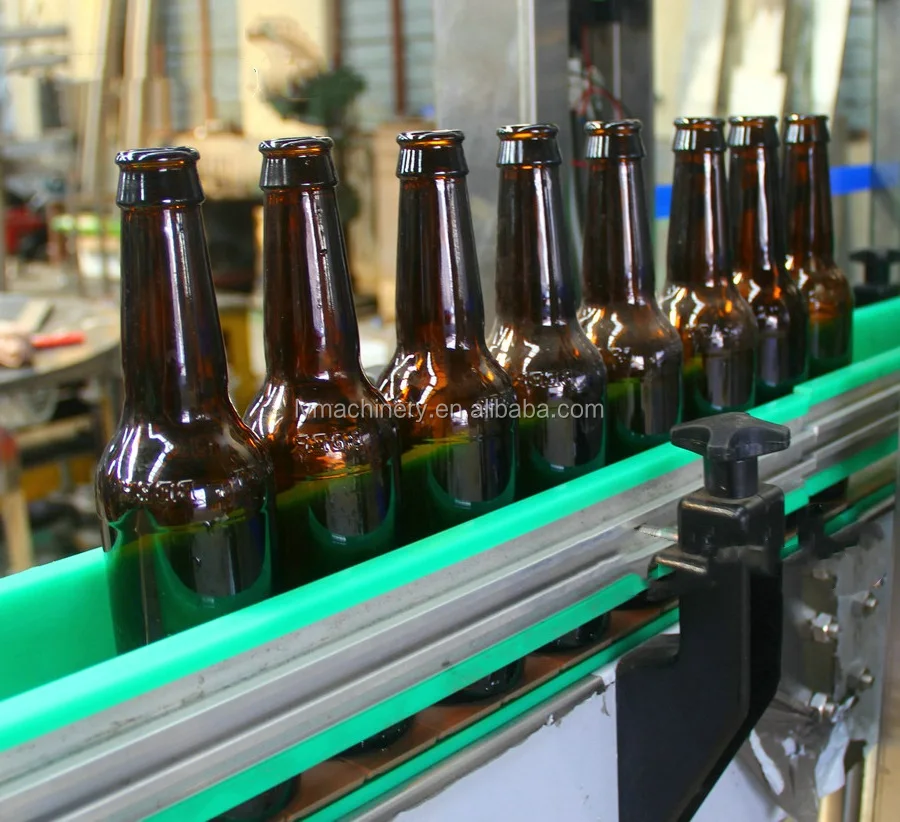

01 - Flat Conveyor.

- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine

02 - Washing Parts.

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
03 - Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

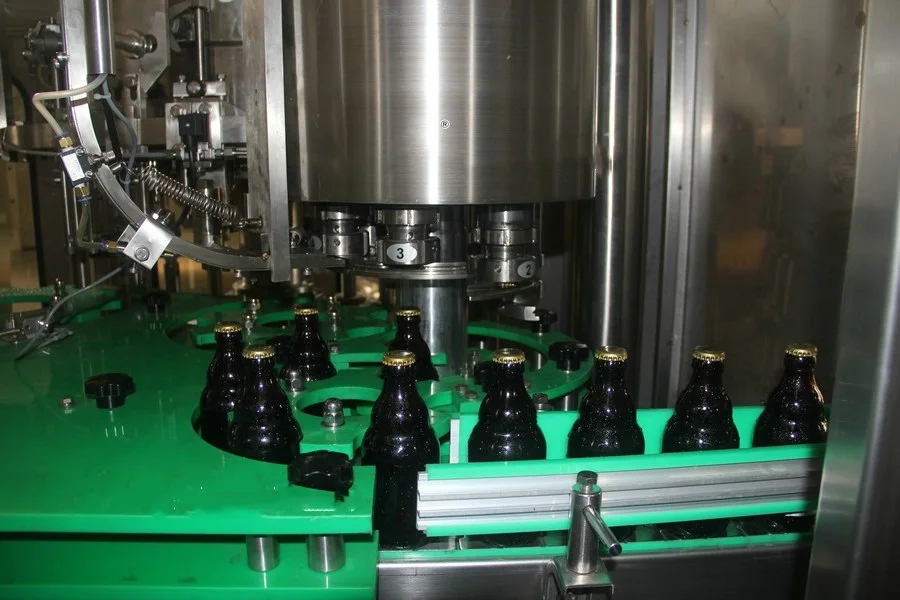

04 - Capping Parts.

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

05 - Flat Conveyor.

- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine

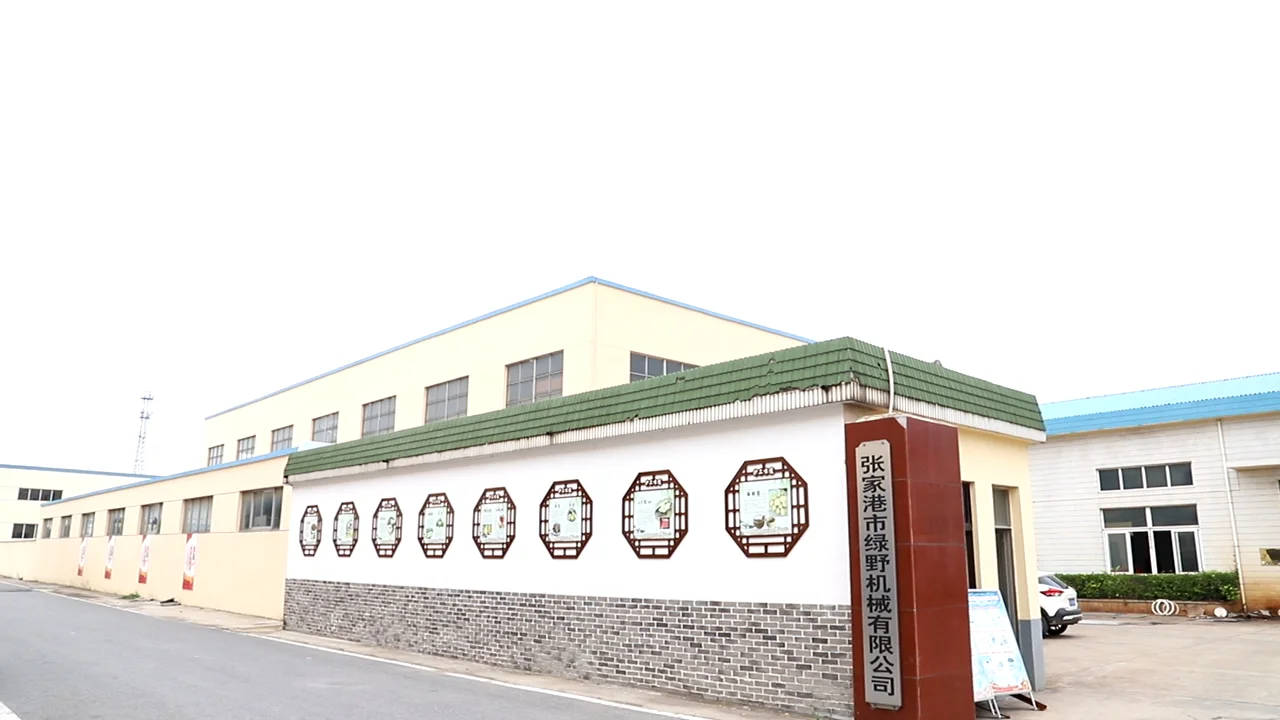

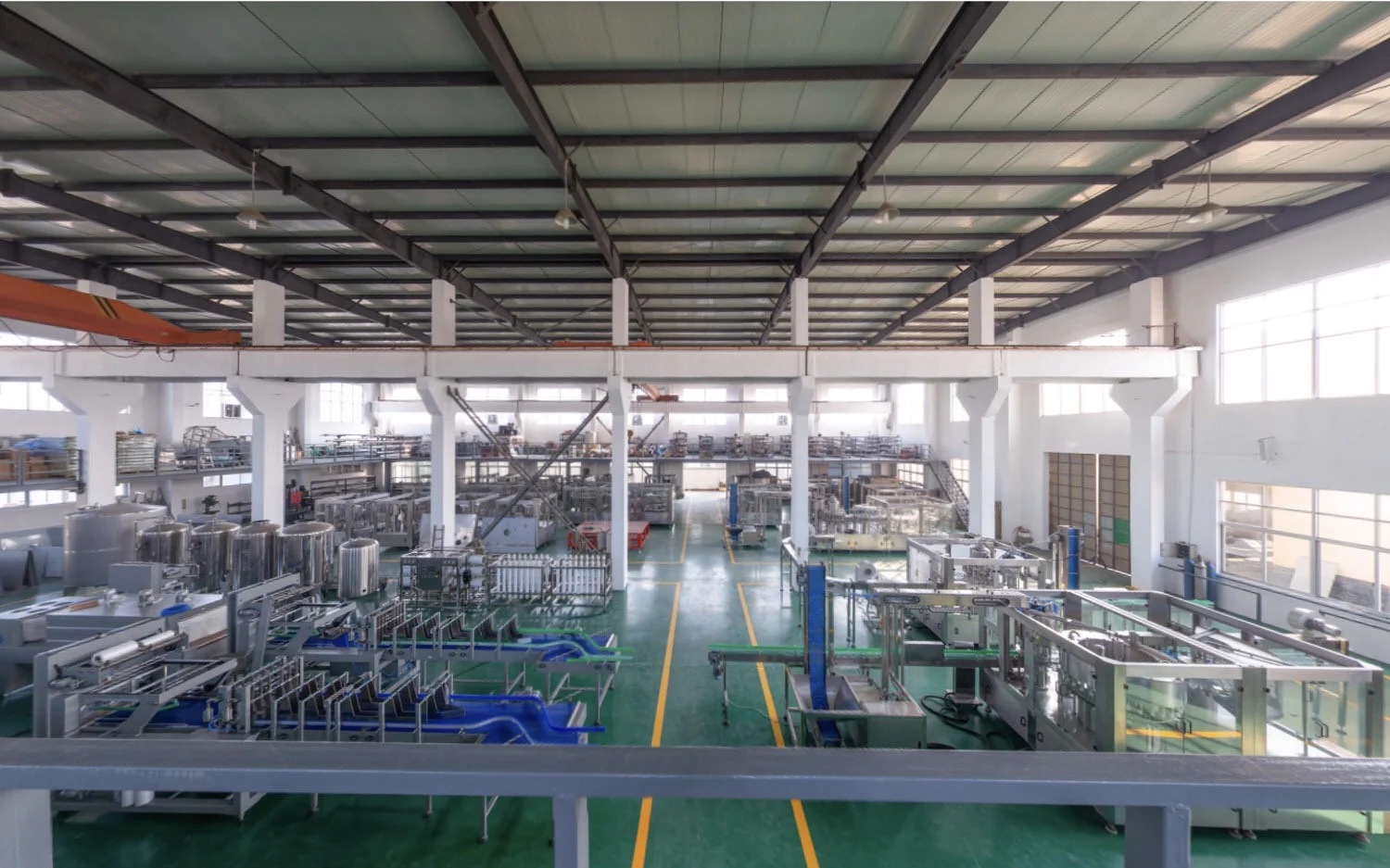

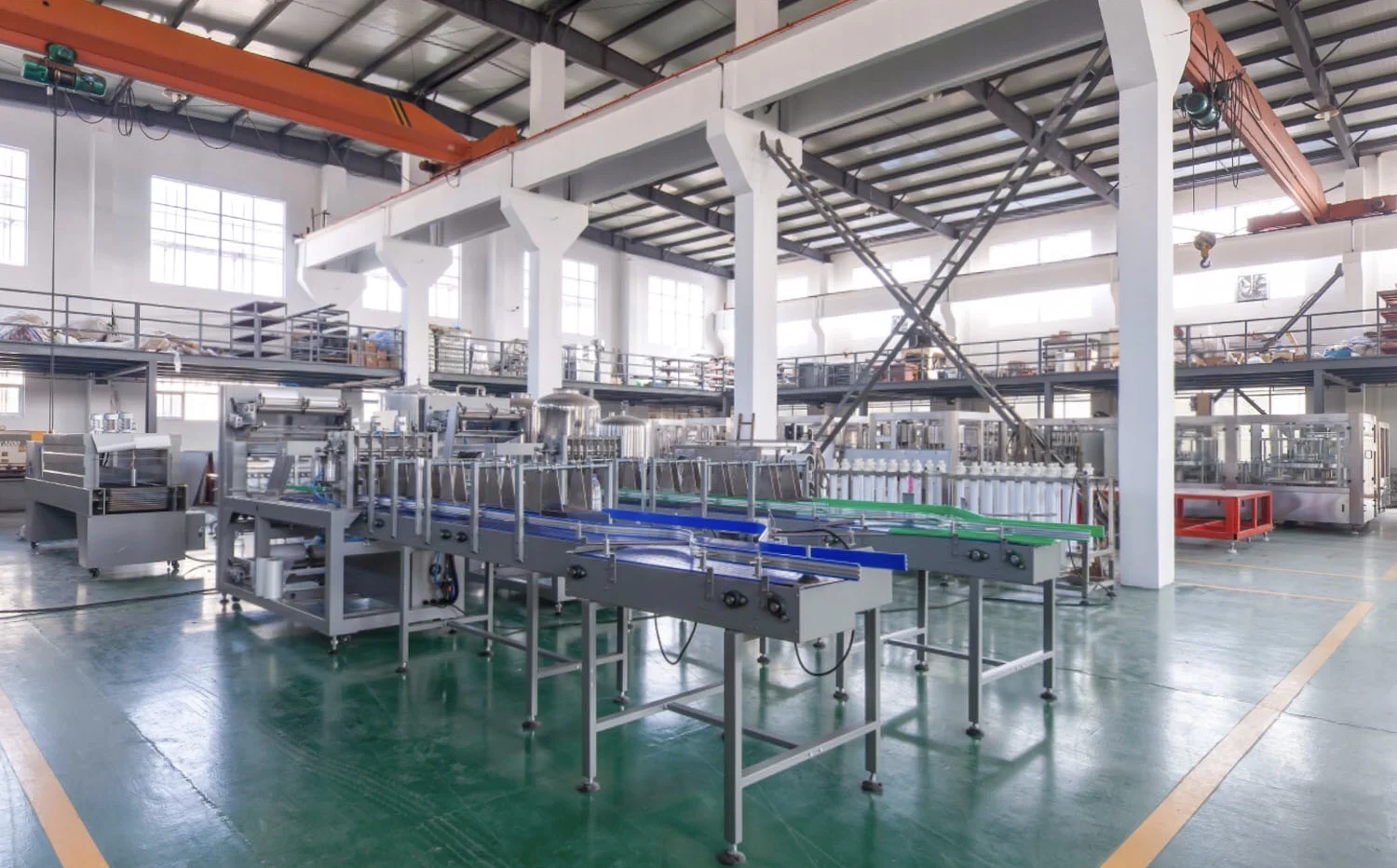

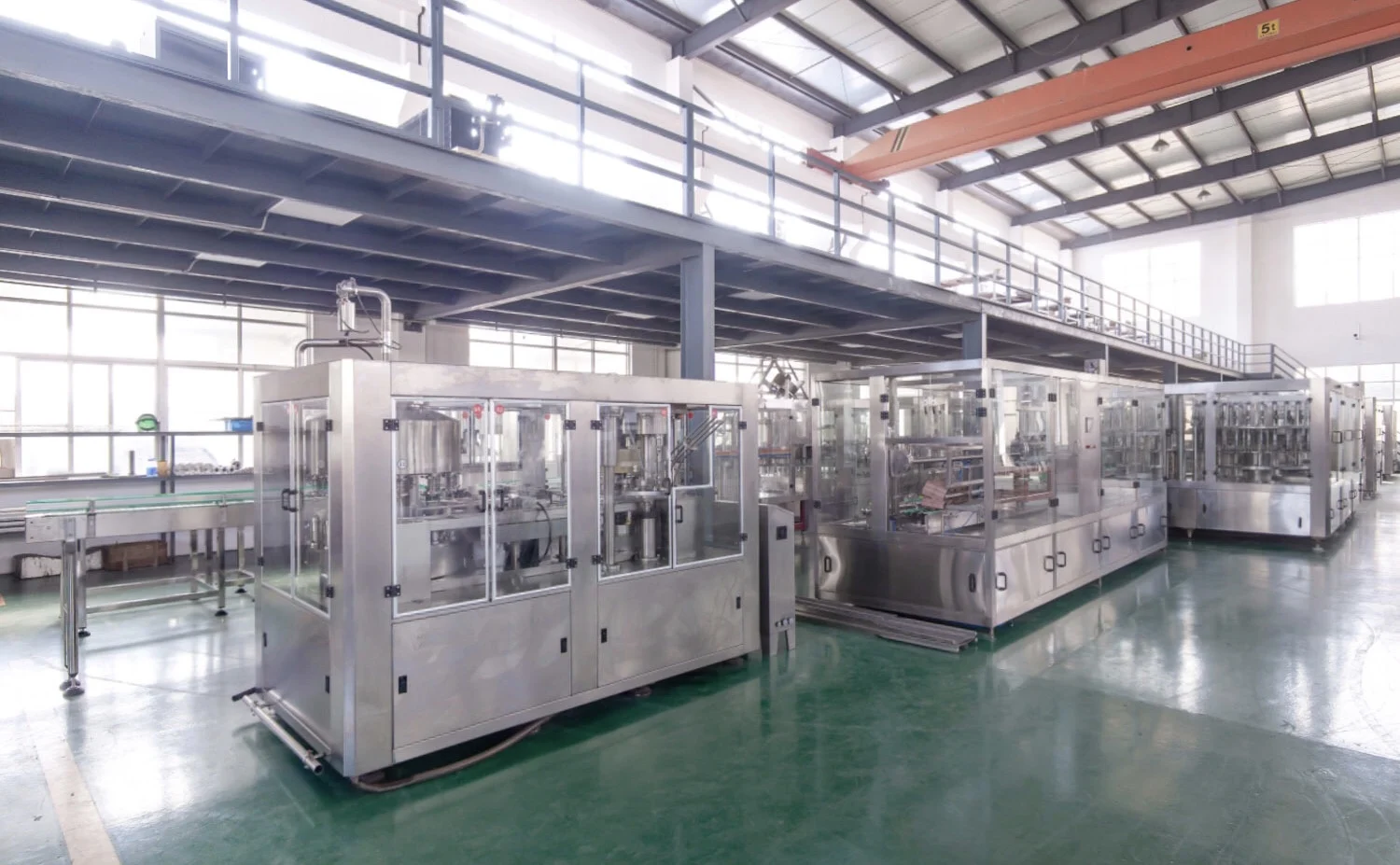

Our Factory

Zhangjiagang LUYE Machinery Co.,Ltd

is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of water treatment facilities. The co. has more than 30 years of production experience.It is a specialized enterprise producing full set of beverage packing machinery and all sorts of water treatment facilities integrating product development,scientific research & design, production manufacturing and technical service, marketing. At present, the co. provides followingproduction lines:
-Aerated beverage complete sets of production line.
-Mineral water, Spring water complete sets of production line.
-Pure water complete sets of production line.
-Fruit juice complete sets of production line.
-Bean milk & protein drink production line .
-White spirit,soy,vinegar filling complete sets of production line.
LUYE would like to move forward with you and will spare no efforts.
Certificates

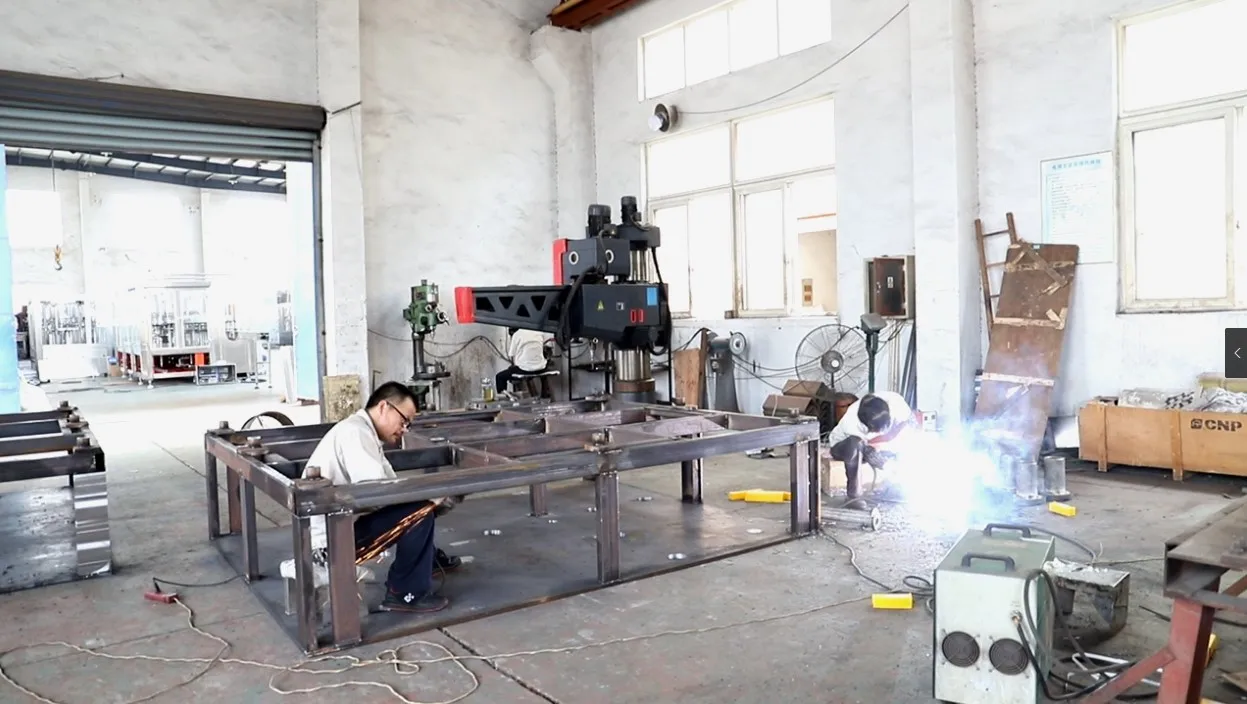

Our Engineer Team and Technology Workers
Our Sales Department And Manager Team
Customer Feedback
Auxiliary Equipment

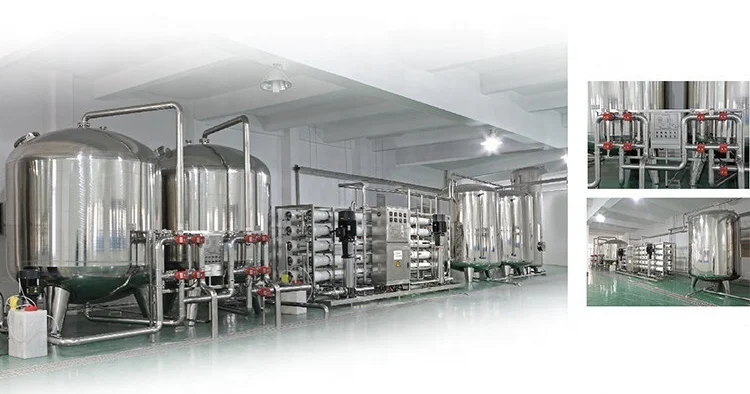

01 - RO Reverse Osmosis Water Treatment System.
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump


1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

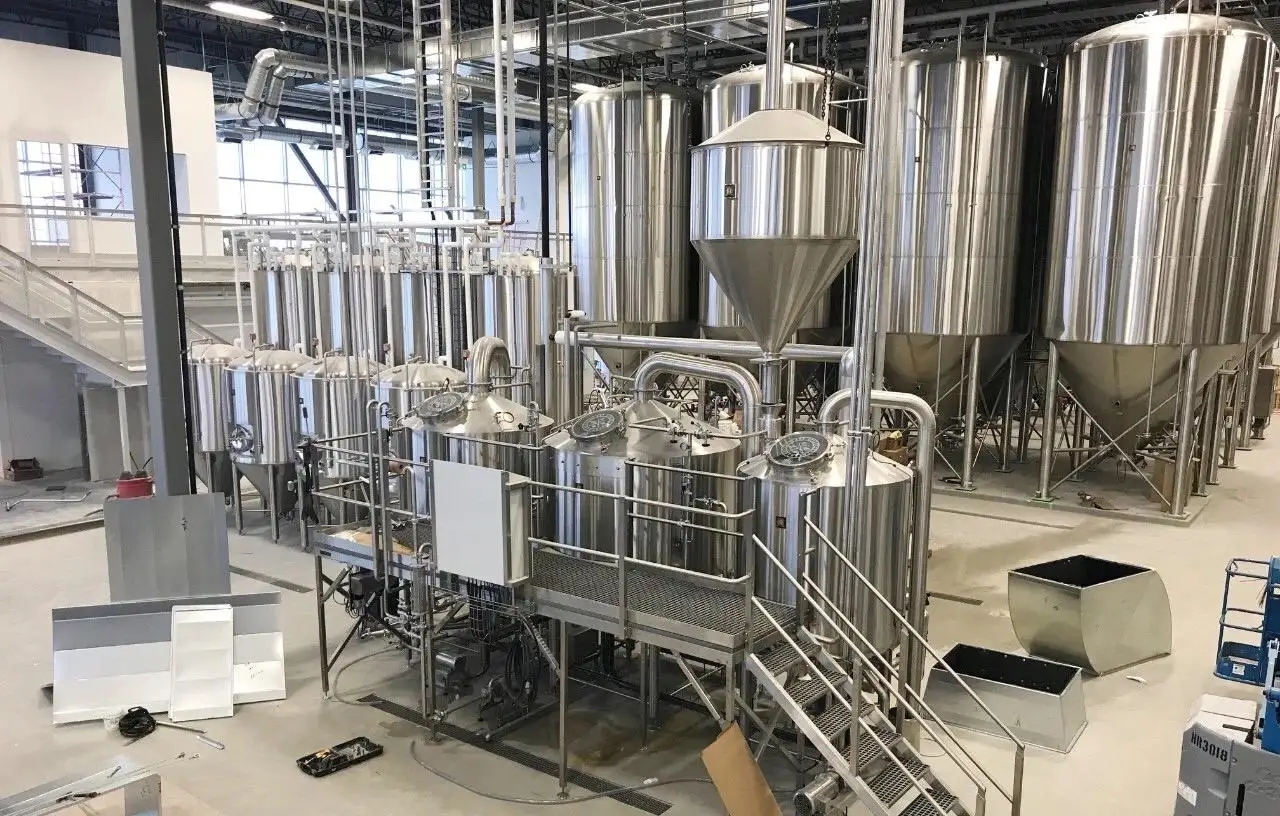

02 - Beer Brewing System.
1-Beer Brewery equipment is used for lab, pub, bar, hotel, restaurant, industry brewery, etc. from 50L to 30000L per day.
2-Brewing process includes Milling, mashing, lautering, boiling, whirlpool, wort chilling, fermentation&maturing, cooling,temperature controlling, cleaning, filling, etc..
3-So complete beer brewing equipment including brewhouse, fermentation tanks, bright beer tank, glycol system, controlling system, beer filling machine etc.
4-We can provide the design solution from drawing until after installation.

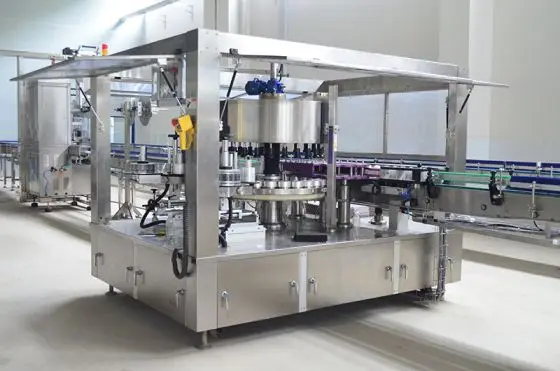

03 - Label Labeling Machine.
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000
containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production

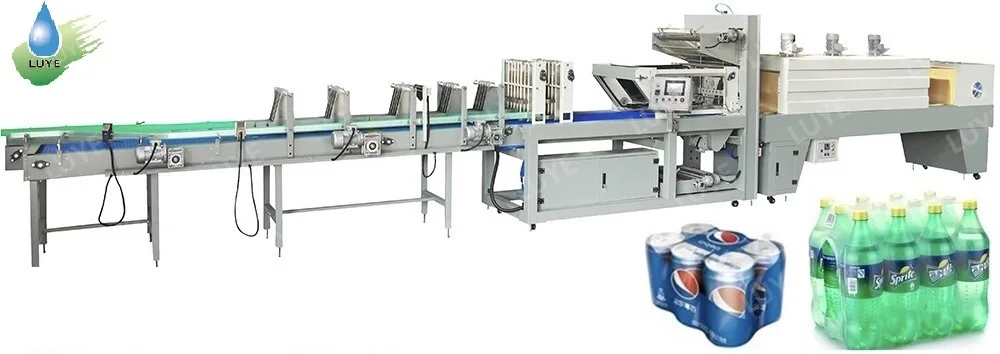

PE FILM SHRINK WRAPPING PACKAGE MACHINE
Optional Equipment:
1)PE film shrink wrapping package machine
2)Half-Tray carton Shrink wrapping package machine
3)Carton package machine
Choose the above equipment according to your requirement and Packing material.
WOULD LIKE TO KNOW MORE ABOUT LUYE MACHINE EQUIPMENTS, FEEL FREE TO SEND US AN INQUIRY!
LUYE SERVICE

INSTALLATION SERVICE

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.



THE SAMPLE SERVICE

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.



CUSTOMIZED SERVICE

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.



AFTER-SALES SERVICE

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.



QUALITY CONTROL

We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.


WHAT CAN LUYE DO FOR YOU?

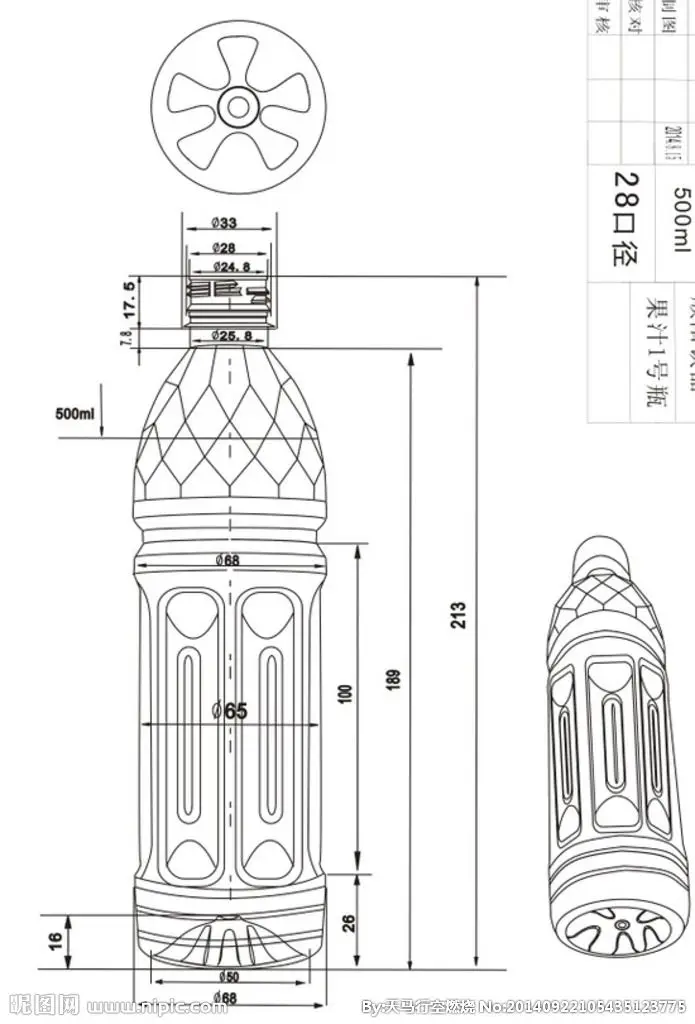

Bottle Design.
Our designers can design bottle styles according to your requirements.

Machine Layout.

We will confirm the machine layout according to your factory.

Sample Project.

We can provide a sample project for you to visit.

Factory House Building.
We LUYE Machine can help our customer to build them factory house , support A to Z whole solution.
FAQ

1.ARE YOU MANUFACTURER OR TRADE COMPANY?

 We are manufacturer, located in Zhangjiagang. We are Specialized in beverage machinery 30 years!Our company business is supply all kind of beverage filling machine , package machine, water treatment machine And complete line from A-Z for water, juice , carbonated drink, beer, Aluminum Can drink , all kind of bottle drink filling machine

2.WHAT'S THE ORDER PROCESS?

a.Inquiry-- Provide us all your clear requirements.

b.Quotation-- Official quotation form with all clear specifications.

c.Payment terms-- T/T 30% in advanced, balanced before shipment. We can talk about this when deal.

d.Shipping-- By sea, Detailed picture of package will be provided.

3.CAN YOU GIVE ME YOUR PRICE LIST?

Sorry, we are machine manufacturer, we have more than 100 items, and each machine have different bottle Type ,weight, Voltage, Dimension, Capacity, Usage so on request. So please send me your detail request, then I will email you back the price.

4.WILL YOU HAVE SOME DISCOUNT?

a.To clients who bring repeat orders and large orders

b.Please contact us for Better Quote.

5.HOW CAN I INSTALL MY MACHINE WHEN IT ARRIVES?

We will send our engineer to go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.



• Your inquiry related to our product & price will be replied within 24hours
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
• OEM & ODM projects are both available
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.

Welcome To Visit ZhangJiaGang LUYE Machinery CO.,LTD
